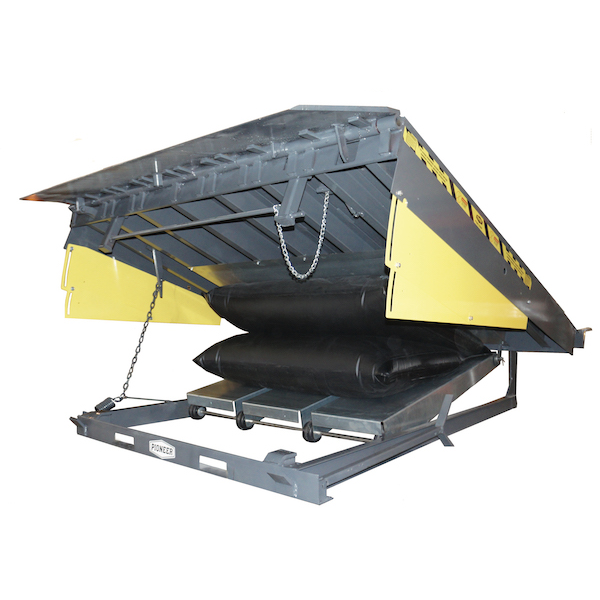

55,000 lb. Minimum yield steel tread plate on the deck and lip
Heavy Duty, PVC-coated polyester fiber bag is resistant to chemical and puncture damage as well as temperature extremes.
All operations are controlled from a pre-wired wall mounted control box.
Full range toe guards powder coated safety yellow
Grease fittings on lip hinge
Lip will yield under impact
4 1/2” laminated bumpers, two per dock leveler
16″ Lip projection – 12″ beyond bumpers
Cross traffic support and night lock security to be provided by lip stored in lip keepers
Standard maintenance strut
Standard dynamic capacities available
Operating range of 12″ above to 12″ below deck
Leveler may be recycled with truck in position
Safety legs automatically provide multiple below dock safety points
3 year warranty on all structural members
